GSM–206C Wireless Module
- Four frequency 850/900/1800/1900 MHZ
- Compatible GSM Phase 2/2+
- Class 4(2W @850/900 MHZ)
- Class 1(1W @1800/1900 MHZ)
- AT command – GSM 7.07, 7.05
- Enhanced AT commands
₹499.00
Description

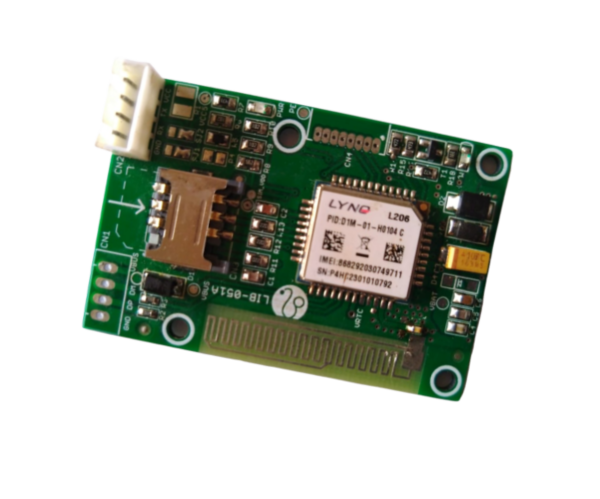

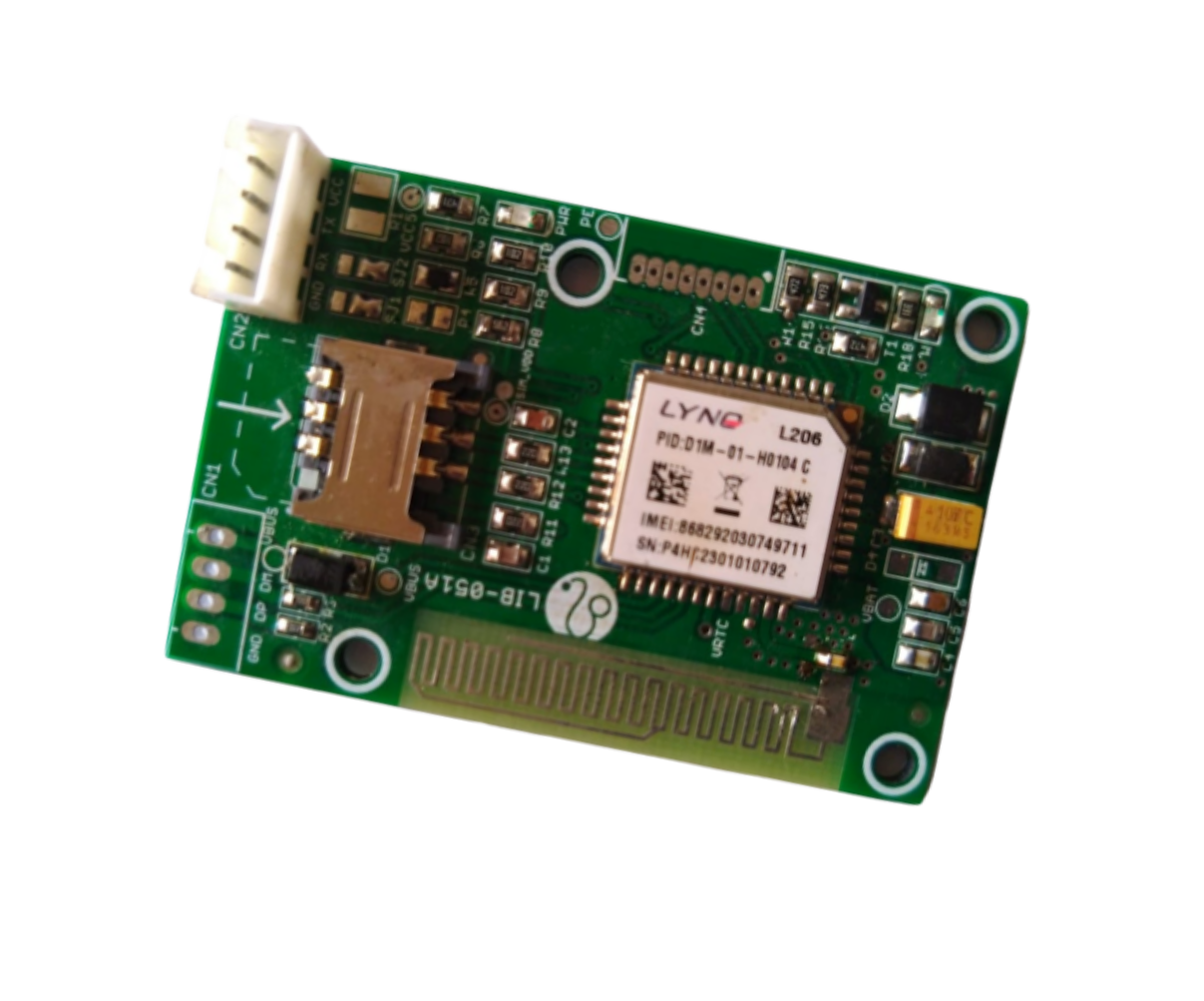

LIGSM – 206C is a single board solution based on LYNQ L206C Module with inbuilt trace antenna. It is a low power and high performance Quad-Band GSM/GPRS module. It has wide work temperature. TCP/IP protocol is built in it. All of these features make it suitable to industrial and domestic area, such as smart measurement, wireless POS, vehicle mounted, secure system, etc.
Specification and Features
Specification
- General Specification
- Specifications for Data : 3.4 ~ 4.2V (3.8V is recommended)
- Operating temperature-40 ~ +85℃
- Storage temperature-45 ~ +90℃
- Dimensions: 60mmx40mm
- Specifications for Data
- GPRS CLASS 12
- Coding schemes CS 1,2,3,4
- PPP-stack
- Transparent Transmission Mode
- TCP/UDP/HTTP/SMTP*
- USSD
- Specifications for SMS
- Message
- MO and MT
- Point-to-Point and cell broadcast
- TEXT and PDU mode
Features
- Four frequency850/900/1800/1900 MHZ
- Compatible GSM Phase 2/2+
- Class 4 (2W @850/900 MHZ)
- Class 1 (1W @1800/1900 MHZ)
- AT command – GSM 7.07, 7.05, and enhanced AT commands
Applications
- SMS
- Server Communication with TCP/IP, HTTP
Technical Documents
